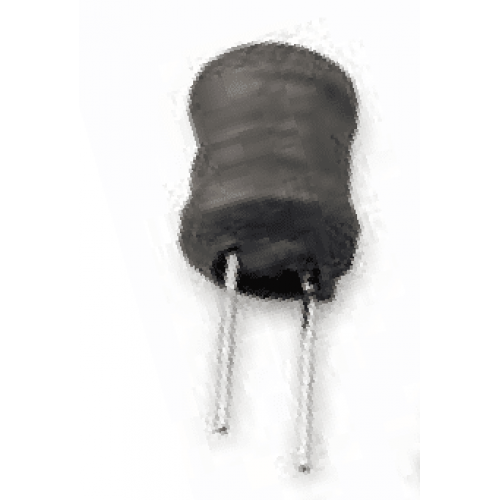

4.7uH Inductor 18R472 - Newport Components
4.7uH 18R472C Inductor by Newport
Download MuRata 1800R series datasheet:
- Series - 1800R Inductance - 4.7uH Q factor - 106@1000kHz, Resistance - 5.5m Ohms, Current DC max - 5.35A SRF: > 13 MHz
- Case style - Radial,
- Dims: Body - 10.8mm diameter bobbin x 12 mm high. Leads : 33mm x 0.7mm pitch 6.3mm
- status: NOS ( New Old Stock)
- RoHS compliant : No.
History: Newport Components became C&D Technologies in Dec 2000, then muRata in Nov 2007
- Availability: Out Of Stock
- Product Code: 4.7uH Inductor 18R472 - Newport Components
- MPN: 18R472
£0.44
£0.20
