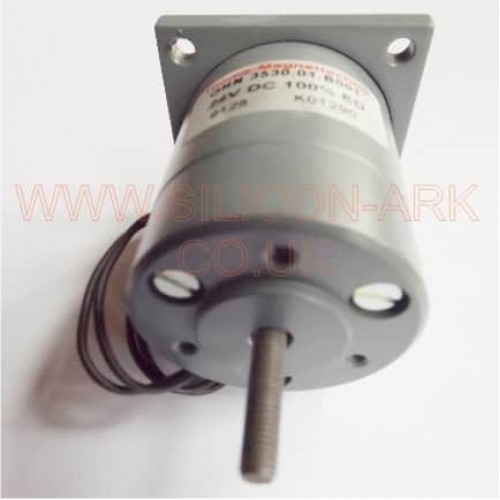

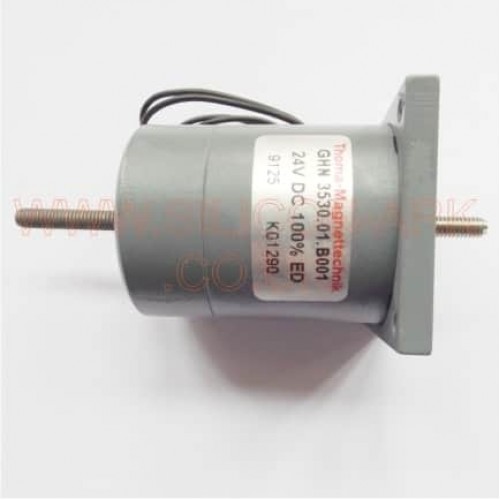

Solenoid 24Vdc (GHN3530.01.B001) - Thoma

Push pull Solenoid 24Vdc 100% ED  by Thoma-Magnettechnik.

manufacturers part number: GHN3530.01.B001

86mm long ,4mm diameter threaded shaft that extis from both sides of the solenoid casing by approx 18.5mm.  throw in either direction is approx 7.5mm.

solenoid body length: 50mm  Diameter 35mm.

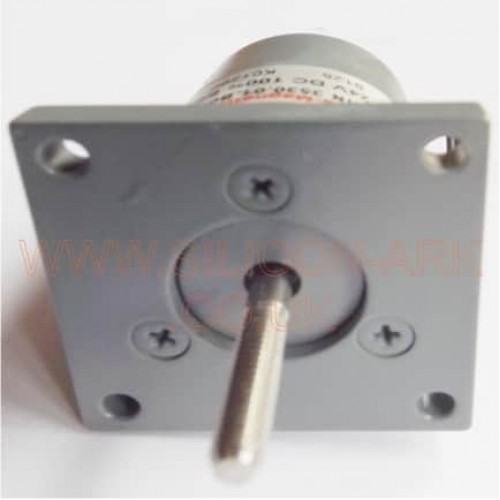

Mounting is via a 28mm square flange plate at one end.with 4 off. 4mm through holes.

Status: NOS (New Old Stock)

RoHS: tbc.
