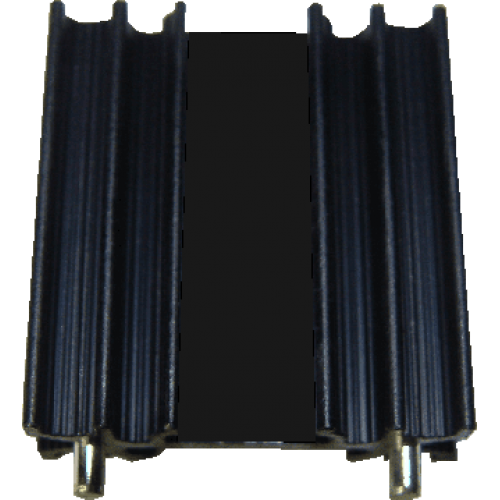

TO-220 / 218 / 247 Heat sink

An extruded black anodised aluminium heatsink, with two plated steel locating pegs. - 2.6 mm diameter at 25.4 mm centres (same channel can be used for the insertion of self tapping srews ! )

38 mm high ( excluding pegs) x 35 mm wide x 12.73mm deep.

Undrilled, thus allowing for a range of differing semiconductor types apart from TO-220 / 218 / 247's

Thermal resistance 10 degrees per Watt.  weight 17g
