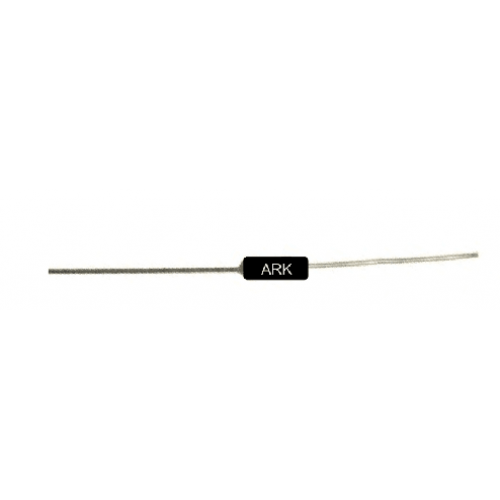

Thermistor 27 Ohm RTH42 - military grade

RTH42  Military grade silicon thermistor 27 ohms +/- 5% at room temp (25ºC ) increasing to 47.25 Ohms @ 125ºC used in temperature compensating ciurcuits.

Range :  16.605 ohms@ -55ºC     21.33 ohms@ -15ºC    23.30 ohms@ 0ºC   31.32 Ohms @ 50ºC     36.45 ohms @75ºC   41.715 Ohms @ 100ºC   47.25 Ohms @ 125 ºC

S.I. Code 40-529-1060-27U  to:   MIL-T-23648/ (A) 19    NSN: 5905-01-029-8250

marked: RTH42   ES27OJ    glass, hermetically sealed   300mW at 25ºC   125mW @ 125ºC  range -55 to 125ºC  dims: 7.2 x 2.4mm dimeter (leads o.52 x 50mm long)

status: NOS ( New Old Stock) - ex military aviation supplier.(original ducumentation / inspection certificates available)  sample retested 14/2/14  100% pass rate

RoHS : NA
