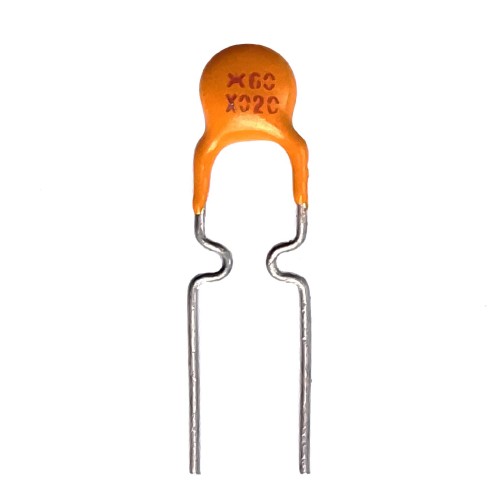

Polyswitch 0.2A 60V Resettable Fuse (RXE020) - Raychem

RXE020 polyswitch resettable fuse by Raychem (now littelfuse)

Download Raychem RXE020 Polyswitch .pdf datasheet:

Trip current:  0.4A   Hold current:  0.2A    Max current:  40A

Max voltage 60V

Initial resistance  1.83Ohms (min) to 2.74 (max)

Lead pitch 5.08mm  x 0.51mm diameter (24 AWG).

Dimensions: B 11.7mm (to lead kink) x 7.4mm x 2.2mm

TS legacy stock No.: RS 184-4924

UL , CSA and TUV approved

RoHS compliant: no
