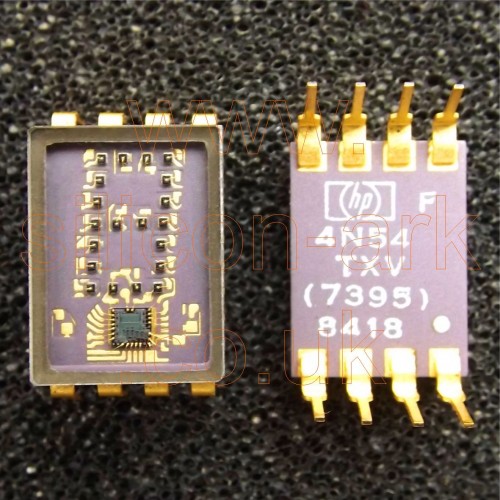

HP5082-7395-(F) (TXV-7395) Hex LED Display - Hewlett Packard

TXV-7395  Hex  4 x 7 LED Display  by Hewlett Packard.

NSN number 5962-01-169-1079

All TXV displays were HP5082-7395 but further tested to MIL-STD-883

Luminosity rank:  "F" ,  no decimal points are built into this device.

Package:  hermetically sealed glass (13.5 x 10.2mm face) and ceramic Wide DIP8, gold plated pins.

Download Hewlett Packard HP5082-7395 datasheet:

Description: this clever little display only needs 4 data inputs (Hex 8,4,2,1)  to output 16 states (0-9) and (A-F)  , sending pin 5 high latches the last state using the onboard memory. Pin 4 will blank the display without wiping the memory.

Status: ex. major aircraft engine manufacturer,  selected refurbs.   New retail; $130   our price GBP £50

Individually tested components:  YES we have a custom test jig for these please see below video:

RoHS compliant: N/A as  military / aerospace grade device
